3.7V

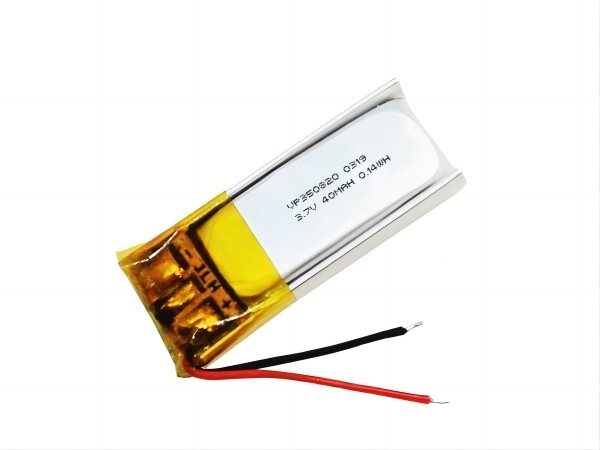

Small Size 3.7V 40mAh 350820 Li-Polymer Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP350820
Nominal Voltage: 3.7V
Nominal Capacity: 40mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
PCM: Over charge/discharge, over current, short circuit protection
Size(T*W*L): 3.7*8.5*22.5mm Max
Weight: 1.2g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    Battery application: Smart Wearable, Bracelet Headset, VR glasses, Hearing Aid, etc.
    Note: The size of lithium polymer battery can be custom-made. We have advantage making special LiPo battery such as extremely thin LiPo battery (1.5mm), high temperature LiPo battery, low-temperature LiPo battery, special shape LiPo battery (round), welcome to inquiry!
