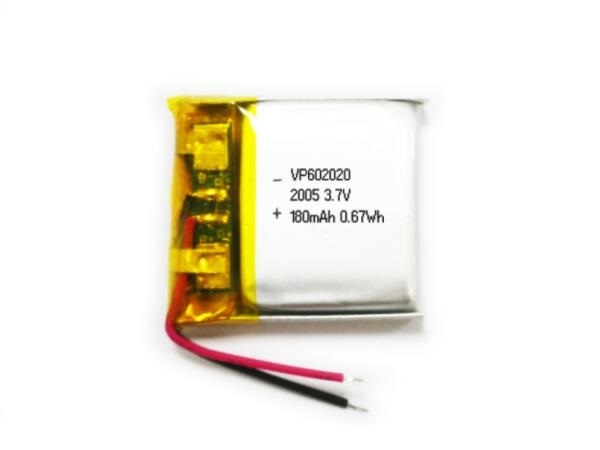

3.7V 180mAh 602020 Li-Polymer Battery With Wire

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP602020
Nominal Voltage: 3.7V
Nominal Capacity: 180mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
PCM: Over charge/discharge, over current, short circuit protection
Size(T*W*L): 6.2*20.5*22.5mm Max
Weight: 4.0g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    Battery Features
    1. Cycle charging
    2. Long-lasting battery life
    3. Environmentally friendly
    4. Support customization
    5. Factory direct sales
