3.7V

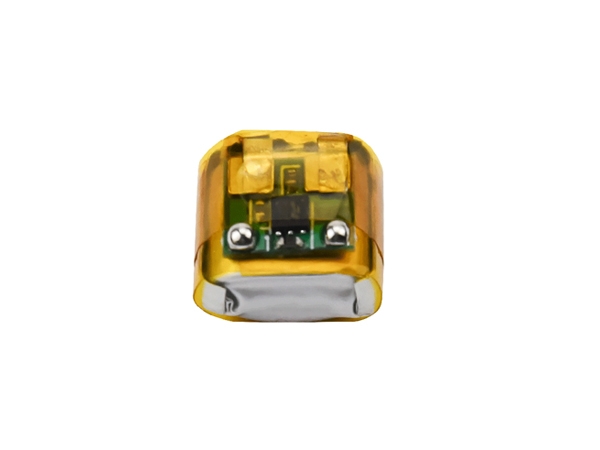

501015 3.7V 50mAh Lithium Polymer Battery

Battery Type: Lithium Polymer Battery
Brand: VCELL/OEM
Model: VP501015
Nominal Voltage: 3.7V
Nominal Capacity: 50mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Max Charge Current: 1.0C
Standard Discharge Current: 0.2C
Max Continuous Discharge Current: 1.5C
Peak Discharge Current: 5.0C(<3S)
Charge  Temperature: 0~45℃
Discharge Temperature: -20~60℃
Dimension(T*W*L): 5.2*10.5*17.5mm Max
Weight: Approx 2.0g
Cycle Life: > 700 times
Lifetime: >5 Years
Wire/Connector: TBD
Send Inquiry
    Feature:
    1. Good safety performance.
    2. The thickness is small and can be made thinner.
    3. Light weight.
    4. Large capacity.
    5. Small internal resistance.
    6. The shape can be customized.
    7. Good discharge characteristics.
    8. The design of the protection board is simple.
    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
