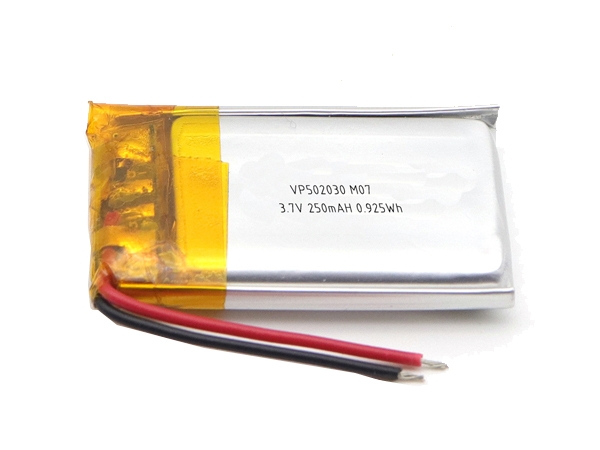

3.7V 502030 250mAh LiPO Battery For Portable Equipment

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP502030
Nominal Voltage: 3.7V
Nominal Capacity: 250mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S)
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L):5.2*20.5*32.5mm Max With PCM
Weight: 7g Approx.
Cycle life: >700
Lifetime: >5 Years
Wire/Connector: TBD
Send Inquiry
    Application Lithium polymer battery:
    Mobile phones, tablets, Bluetooth headsets, smart watches and other smart wearable devices, GPS, electric toys, beauty instruments, aromatherapy machines, LED lights, quadcopters, drones ,etc.
    Application Lithium polymer battery pack:
    E-bike, power tools, new energy vehicles, medical equipment, digital cameras, measuring instruments, robots, etc.
    Tips: If you see our products and have questions about the products, please contact our account manager to send your specific needs, such as voltage, capacity, shape, size, working current, etc. We can customize and meet your needs according to your needs. The best lithium battery matched by the equipment, we are very happy to provide you with test samples, and will reply you as soon as possible, thank you!
