3.7V

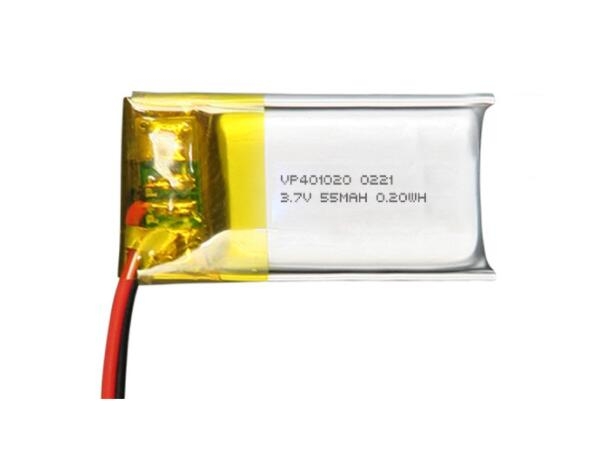

Ultra Small 401020 3.7V 55mAh LiPo Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP401020
Nominal Voltage: 3.7V
Nominal Capacity: 55mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 4.2*10.5*22.5mm Max
Weight: 3g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    The application of 3.7v 55mah li-polymer battery: Smart Wearable, Bluetooth devices, etc.
    The features of 3.7v 55mah lithium polymer battery
    1. Rechargeable, low self-discharge, long endurance
    2. Small size, low weight
    3. Built-in PCM, safe, stable
    4. Long lifetime
    Note: The size of lithium polymer battery can be custom-made. We have advantage making special LiPo battery such as extremely thin LiPo battery (1.5mm), high temperature LiPo battery, low-temperature LiPo battery, and special shape LiPo batteries (round), welcome to inquiry!
