3.7V

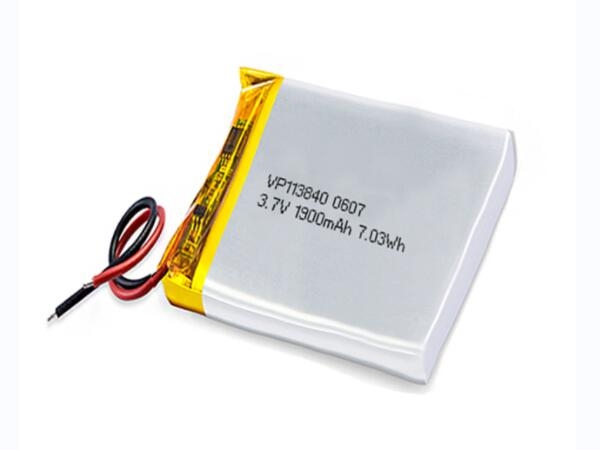

3.7V 1900mAh 7.03Wh 113840 Rechargeable Lithium Polymer Battery

Battery Brand: VCELL/OEM
Battery Type:
Li-Polymer Battery
Model:
VP113840
Nominal Voltage:
3.7V
Nominal Capacity:
1100mAh
Charge Cut-Off Voltage:
4.2V
Discharge Cut-Off Voltage:
2.75V
Standard charge current: 0.2C

Max charge current: 1C

Standard discharge current: 0.2C

Max continuous discharge current: 1.5C

Peak discharge current: 5C
(<3S)
Charge temperature:
0~45℃
Discharge temperature:
-20~60℃
PCM:
Over charge/discharge, over current, short circuit protection
Size(T*W*H):
11.2*38.5*42.5mm Max
Weight:
32g Approx.
Cycle life:
>700
Wire/Connector: TBD



Send Inquiry
    Features:
    1. Sufficient battery capacity, battery life,Strong force, stable performance, durable;
    2. Built-in protective PCM charging module, effectively prevents over charging, over discharging, over current, short circuit.
    3. Self-discharge less than 1.5% per month
    4. High and low temperature resistance, wide range of temperature adaptation;
    5. Using environmentally friendly materials, green and environmentally friendly, we work with you to protect the earth.
    6. The size of lithium polymer battery can be custom made. We have advantage making special LiPo battery such as extremely thin LiPo battery (1.5mm), high temperature LiPo battery, low temperature LiPo battery, special shape LiPo battery (round)
    7. Certification BIS RoHS, UL, MSDS, Reach, UN38.3
    8. Applications: Bluetooth Headset, Recorder, Reader, Speaker, Power Bank, etc.
