3.7V

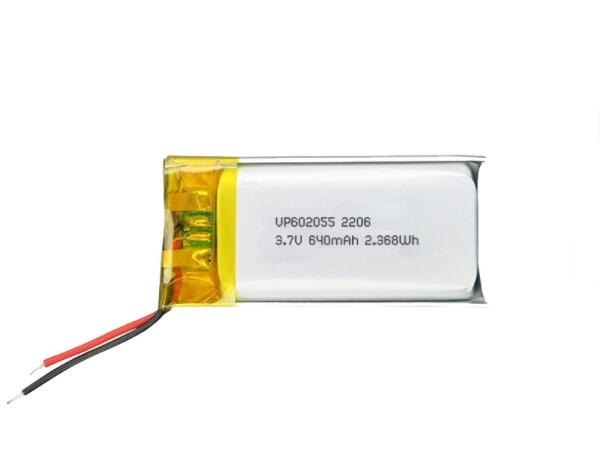

3.7V 640mAh 602055 Lithium Polymer Battery With PCM

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP602055
Nominal Voltage: 3.7V
Nominal Capacity: 640mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current : 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
PCM: Over charge/discharge, over current, short circuit protection
Size(T*W*L): 6.2*20.5*57.5mm Max
Weight: 16.0g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    602055 LiPo Battery Application:
    Bluetooth Devices, GPS, DVD, mobile,  video games, PAD, E-books  and other products
    Feature:
    This product has good hardness, high capacity, low internal resistance, safety and durability, explosion-proof and leak-proof, long continuous discharge time.
    Note:The company‘s battery products can be customized according to the customer‘s size (the thickness, length and width of the cell can be increased or decreased according to the customer‘s needs, and new cell models can be developed) to match the most suitable battery model for the customer. Can add wires, add protection boards, add terminal plugs and so on for customers.
