3.7V

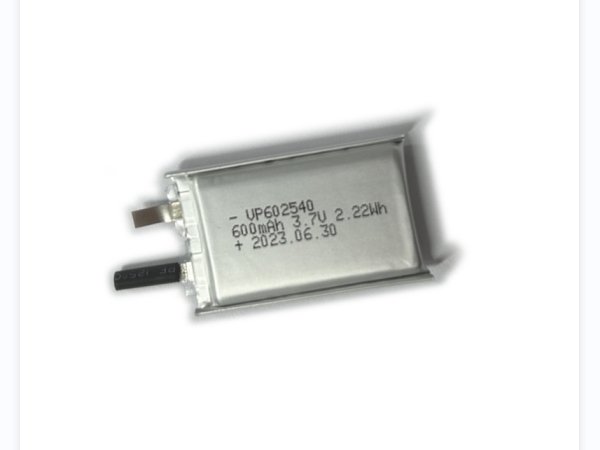

3.7V 600mAh 2.22Wh 602540 Lithium Polymer Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP602540
Nominal Voltage: 3.7V
Nominal Capacity: 600mAh
Charge Cut-Off Voltage: 4.25V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L):6.2*25.5*42.5mm Max
Weight: 11g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    602540 LiPo Battery Application:
    Communication products, mobile office equipment, digital products, lighting products, mobile transaction equipment, vehicles
    Others: driving recorders, model airplanes, racing cars, unmanned aircraft, robots, toys, electric tools, medical equipment and other products
    Battery Feature:
    This product has good hardness, high capacity, low internal resistance, safety and durability, explosion-proof and leak-proof, long continuous discharge time
    Note:The company‘s battery products can be customized according to the customer‘s size (the thickness, length and width of the cell can be increased or decreased according to the customer‘s needs, and new cell models can be developed) to match the most suitable battery model for the customer. Can add wires, add protection boards, add terminal plugs and so on for customers
