3.7V

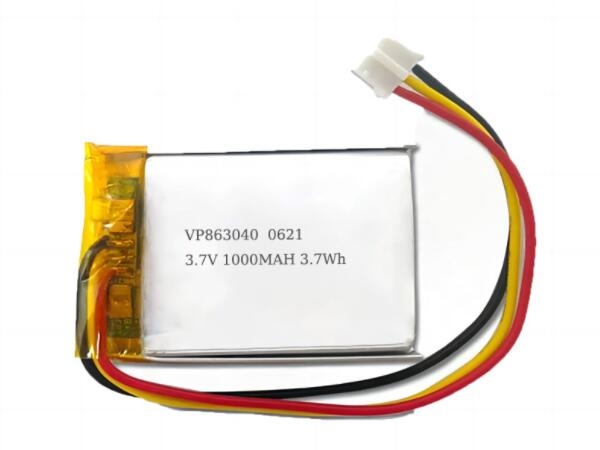

863040 3.7V 1000mAh 3.7Wh Lithium Polymer Battery

Battery Type: Lithium Polymer Battery
Nominal Voltage: 3.7V
Nominal Capacity: 1000mAh
Battery Brand: VCELL/OEM
Model: VP863040
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 8.8*30.5*42.5mm Max
Weight: 18.0g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    Advantage
    1. Low self-discharge, built to last
    2. No memory effect, durable, economical
    3. Safe and environmentally friendly
    4. Built-in PCM/BMS, effectively preventing the battery from overcharging, over-discharge, over current. short circuit, etc
    5. The size of lithium polymer battery can be custom-made. We have advantage making special Li-Po battery such as extremely thin Li-Po battery (1.5mm), high temperature Li-Po battery, low temperature Li-Po battery, special shape Li-Po battery (round)
