3.7V

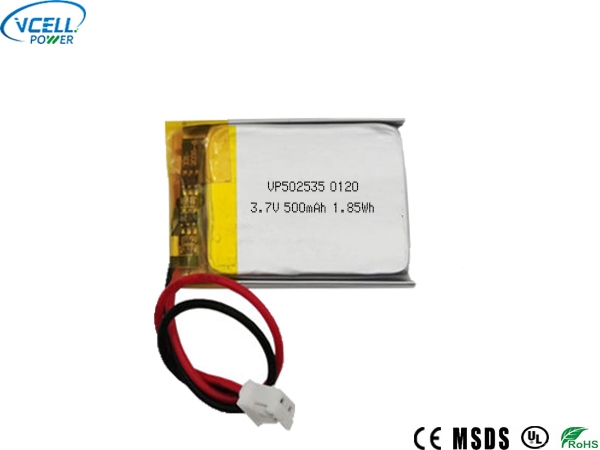

502535 3.7 Volt 500mAh Lipo Rechargeable Battery

Battery Type: Lithium Polymer Battery
Battery Brand: VCELL/OEM
Model: VP502535
Nominal Voltage: 3.7V
Nominal Capacity: 500mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 5.2*25.5*37.5mm Max, With PCM
Weight: 10.0g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The application of 502535 3.7 volt 500mAh lipo rechargeable battery
    smartwatches, Bluetooth headsets, Bluetooth speakers, GPS, dash cams, baby monitors, and pet trackers,  wireless keyboards, mice, VR glasses,etc.
    The feature of 502535 3.7 volt 500mAh lipo rechargeable battery
    1. With a 500mAh capacity, it provides longer battery life for small devices.
    2. The ultra-thin 5.2mm thickness allows for flexible integration into various thin and portable electronic products.
    3. Weighing approximately 10 grams, its ultra-light weight does not add any burden to the device.
    4.  Utilizing a gel-type electrolyte, it is less prone to leakage.  The aluminum-plastic film soft packaging eliminates the risk of leakage and swelling, ensuring safer use.
    5. The battery can be equipped with a PCM (Protection Circuit Module), providing multiple protection mechanisms against overcharging, over-discharging, and short circuits.
    6. Environmentally friendly, it complies with international certification standards such as RoHS and CE, and contains no harmful substances.
