3.7V

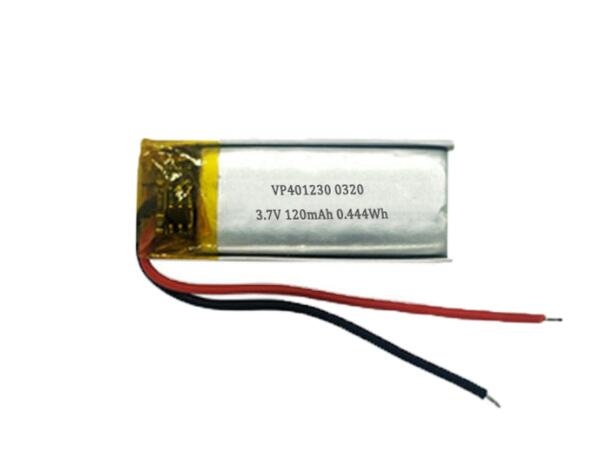

401230 3.7V 120mAh Lipo Battery For Wearable Electronic Devices

Battery Type: Lithium Polymer Battery
Battery Brand: VCELL/OEM
Model: VP401230
Nominal Voltage: 3.7V
Nominal Capacity: 120mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 4.2*12.5*32.5mm Max
Weight: 4g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    The Application Of 401230 LiPo Battery:
    Communication products, mobile office equipment, digital products, lighting products, mobile transaction equipment, vehicles
    Others: driving recorders, model airplanes, racing cars, unmanned aircraft, robots, toys, electric tools, medical equipment and other products.
    Feature:
    This product has good hardness, high capacity, low internal resistance, safety and durability, explosion-proof and leak-proof, long continuous discharge time.
    Note:The company‘s battery products can be customized according to the customer‘s size (the thickness, length and width of the cell can be increased or decreased according to the customer‘s needs, and new cell models can be developed) to match the most suitable battery model for the customer. Can add wires, add protection boards, add terminal plugs and so on for customers.
