3.7V

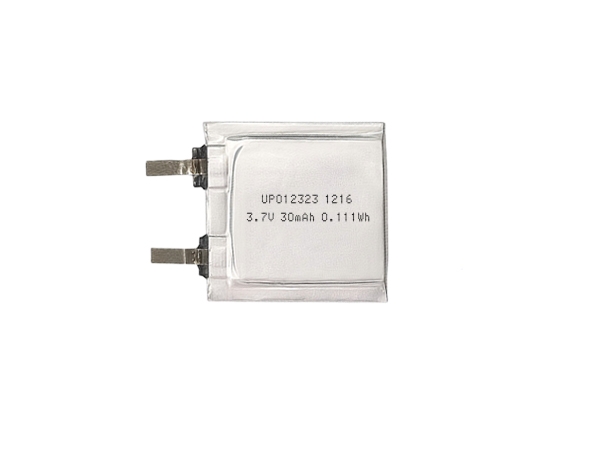

1mm Ultra Thin 012323 Lithium Polymer Battery 3.7V 30mAh

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP012323
Nominal Voltage: 3.7V
Nominal Capacity: 30mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 1.0*23.5*25.5mm Max
Weight: 2.0g Approx
Cycle life: >700 cycles at 100%DOD
Service life: >5 years
Wire/Connector: TBD
Send Inquiry
    What are the advantages of the 012323 3.7V 30mAh lithium polymer battery?
    1. 1mm ultra-thin design, can be embedded in extremely narrow and thin small devices, solving the power supply problem in small spaces, suitable for precision small home appliances and digital accessories.
    2. Lithium polymer material, no risk of leakage or swelling, safe and reliable.
    3. 30mAh small capacity design, precisely matching the power consumption needs of low-power devices, avoiding the cost waste caused by large-capacity batteries.
    4. More than 700 charge and discharge cycles, service life of more than 5 years, durable.
    5. Approximately 2g in weight, suitable for portable wearable devices.
    6. Can be used with a protection circuit board (PCM), providing overcharge, over-discharge, and overcurrent protection.
    7. Complies with RoHS and other environmental certifications, free of mercury and other harmful substances.
    What devices can the 012323 3.7V 30mAh lithium polymer battery be used in?
    Headphones, ultra-thin sports bracelets, electronic skin patches, miniature sensors, door and window sensors, low-power positioning trackers, etc.
