3.7V

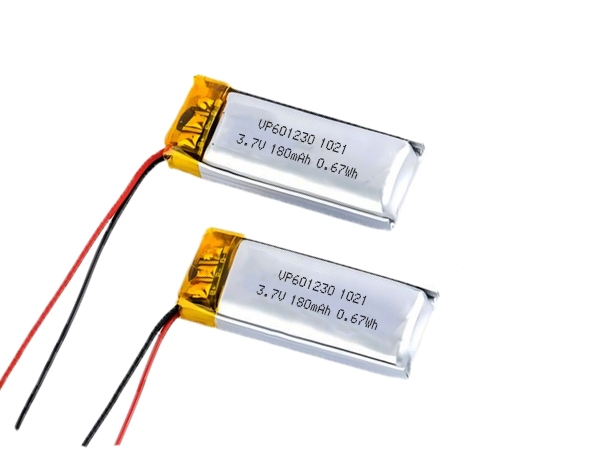

601230 3.7V 180mAh Rechargeable Lipo Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP601230
Nominal Voltage: 3.7V
Nominal Capacity: 180mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S)
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 6.2*12.5*32.5mm Max With PCM
Weight: 4.0g Approx.
Cycle life: >700 times
Lifetime: >5 Years
Wire/Connector: TBD
Send Inquiry
    The feature of lithium polymer battery
    1. No memory effect, built to last
    2. Low discharge rate, powerful energy
    3. Small size, lightweight, easy handle
    4. Built-in PCM to prevent the battery from overcharging, over-discharge, short-circuiting, etc
    5. Pollution-free

    The application of lithium polymer battery
    Smart Wearables, Bluetooth devices, etc.

    Note: The size of lithium polymer battery can be custom-made. We have advantage making special LiPo battery such as extremely thin LiPo battery (1.5mm), high temperature LiPo battery, low-temperature LiPo battery, and special shape LiPo batteries (round), welcome to inquiry!
