3.7V

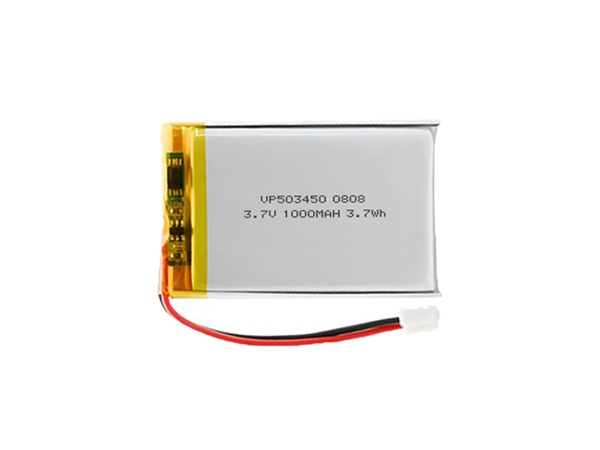

503450 3.7V 1000mAh Rechargeable Li-Polymer Battery With PCM

Battery Type: Lithium Polymer Battery
Model: VP503450
Nominal Voltage: 3.7V
Battery Brand: VCELL/OEM
Nominal Capacity: 1000mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S)
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 5.2*34.5*52.5mm Max, With PCM
Weight: 19.0g Approx.
Cycle life: >700 times
Lifetime: >5 Years
Wire/Connector: TBD
Send Inquiry
    The application of 503450 li-polymer battery:
    Bluetooth wireless headset, GPS, baby monitor, Game Boy, smartwatch, monitoring units, POS machine, dashcam, mobile power, Bluetooth speaker, VR glasses, beauty devices, pet tracker, ring video doorbell, etc.
    The features of 503450 lithium polymer battery
    1. Rechargeable, low self-discharge, long endurance
    2. Small size, low weight
    3. Built-in PCM, safe, stable
    4. Long lifetime
    Note: The size of lithium polymer battery can be custom-made. We have advantage making special LiPo battery such as extremely thin LiPo battery (1.5mm), high temperature LiPo battery, low-temperature LiPo battery, and special shape LiPo batteries (round), welcome to inquiry!
