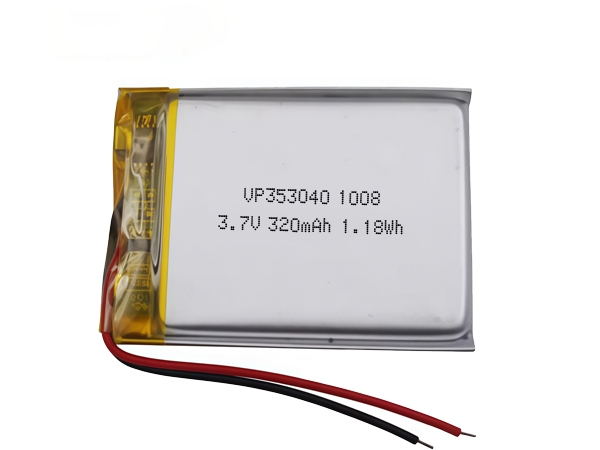

353040 3.7V 320mAh 1.18Wh Polymer Lithium Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP353040
Nominal Voltage: 3.7V
Nominal Capacity: 320mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S)
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 3.7*30.5*42.5mm Max With PCM
Weight: 5.0g Approx.
Cycle life: >700 times
Lifetime: >5 Years
Wire/Connector: TBD
Send Inquiry
    The features of 353040 3.7V 320mAh 1.18wh polymer lithium battery
    1. Ultra-thin 3.7mm profile, ideal for compact consumer electronics.
    2. Lightweight design, suitable for weight-sensitive wearable or portable devices.
    3. Cycle life exceeding 700 cycles with low self-discharge; ideal for long-standby IoT and wearable applications.
    4. Features polymer electrolyte and an aluminum-laminated film casing; offers high safety and explosion resistance.
    5. Supports various configurations including wire leads, JST/Molex connectors, and NTC thermistor leads; customizable lead lengths; OEM/ODM prototyping available.
    6. Certified to CE, RoHS, UN38.3, and other standards.
    Application for 353040 3.7V 320mAh 1.18wh polymer lithium battery
    Bluetooth headsets, smart bands, sleep monitors, digital voice recorders, selfie sticks, wireless portable mice, presentation clickers, mini game controllers, portable pulse oximeters, digital thermometers, mini massagers, dash cams, wireless sensors, smart door/window sensors, low-power IoT terminals.
