3.7V

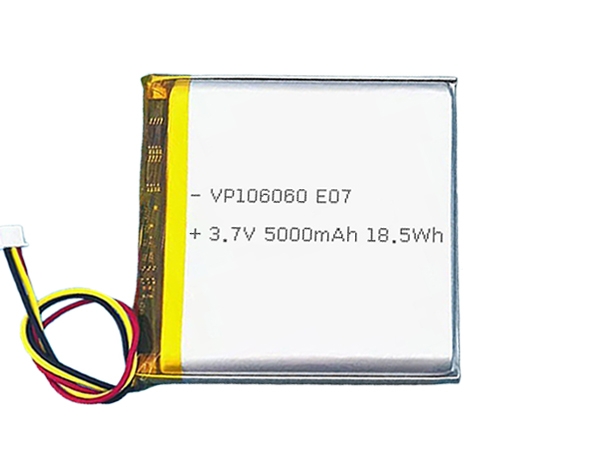

106060 3.7V 5000mAh 18.5Wh Li Polymer Rechargeable Battery

Battery Type: Lithium Polymer Battery
Nominal Voltage: 3.7V
Nominal Capacity: 5000mAh
Model: VP106060
Battery Brand: VCELL/OEM
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 10.2*60.5*62.5mm Max
Weight: 90g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The features of 106060 3.7v 5000mAh 18.5wh li polymer battery
    1. High 5000mAh capacity with an energy density of 18.5Wh, ensuring long-lasting battery life.
    2. Boasts a cycle life of over 700 cycles, ensuring exceptional durability and longevity.
    3. Features a slim, rectangular form factor that allows for neat, space-saving installation; perfectly suited for the battery compartments of small to medium-sized devices, facilitating easy assembly, secure mounting, and hassle-free structural integration.
    4. Constructed using soft-pack polymer materials, offering strong resistance to swelling and leakage, along with robust explosion-proof properties for safe and reliable operation.
    5. Equipped with a built-in PCM (Protection Circuit Module) to safeguard against overcharging, over-discharging, short circuits, and overcurrents.
    6. Supports discharging within a wide temperature range of -20°C to 60°C, making it suitable not only for standard room-temperature use but also for handling demanding environments involving low outdoor temperatures or heat generation from the device itself.
    The applications of 106060 3.7v 5000mAh 18.5wh li polymer battery
    Tablets, smartphones, power banks, laptops, portable DVD players, digital cameras, e-readers, etc.
    Note: Battery voltage, capacity, size, wire gauge, wire length, and connector can be customized.
