3.7V

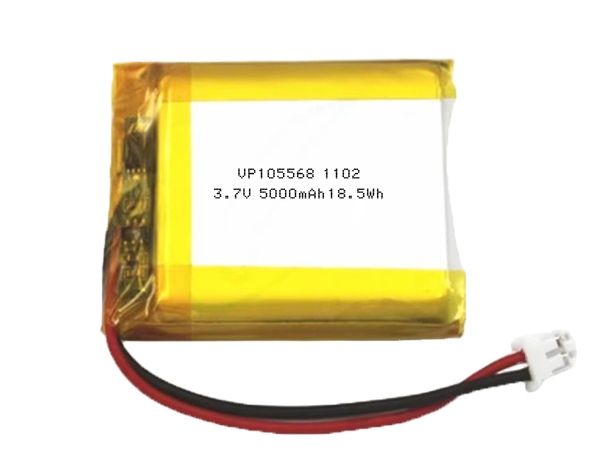

105568 3.7V 5000mAh Lithium Polymer Pouch Battery With PCM

Battery Type: Lithium Polymer Battery
Nominal Voltage: 3.7V
Nominal Capacity: 5000mAh
Model: VP105568
Battery Brand: VCELL/OEM
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 10.2*55.5*70.5mm Max
Weight: 90g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The application of lithium polymer battery:
    Power bank, GPS, remote controller, mobile phone, E-book, iPad, tablet, laptop, portable printer, fingerprint machine, POS machine, PSP, PC,etc.
    The features of lithium polymer battery:
    1. 5000mah large capacity, long endurance
    2. More than 700 lifetime, long endurance
    3. Small size, lightweight, easy handle
    4. Built-in PCM to protect the battery, safe to use
    5. Free from polluting elements such as cadmium, lead, and mercury, compliant with RoHS regulations, and environmentally friendly.
    Note: The company‘s battery products can be customized according to the customer‘s size (the thickness, length, and width of the cell can be increased or decreased according to the customer‘s needs, and new cell models can be developed) to match the most suitable battery model for the customer. Can add wires, add protection boards, terminal plugs, and so on for customers.
