22.2V

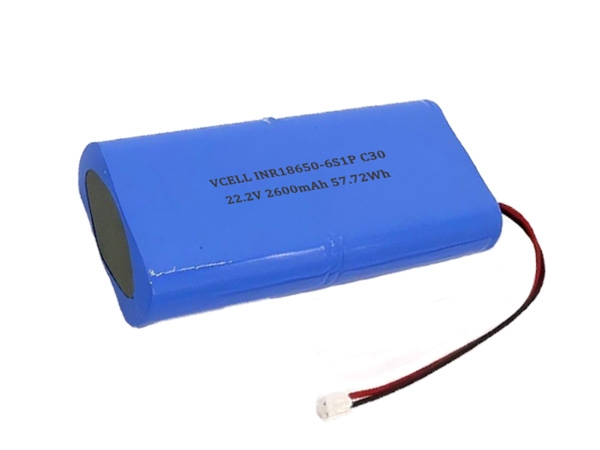

22.2V 2600mAh 18650 6S1P Rechargeable Lithium Ion Battery For Power Supply

Battery Type: Lithium Ion Battery(NCM)
Nominal Voltage: 22.2V
Nominal Capacity: 2600mAh
Battery Brand: VCELL/OEM
Model: VP-NCM-22.2-2600
Charge Cut-Off Voltage: 25.2V
Discharge Cut-Off Voltage: 16.5V
Max Charge Current: 1.0C
Maximum Continuous Discharge Current: 1.5C
Peak Discharge Current: 3.0C(<3S)
Charge Temperature: 0~45℃
Discharge Temperature: -20~60℃
Size(L*W*T): 134*55*24mm Max, with PCM
Weight: 301g Approx
Cycle Life: > 700 Cycles
Wire/Connector: TBD
Send Inquiry
    The feature of Li-ion battery
    1. Long endurance
    2. No memory effect, fast charge
    3. Built-in PCM, prevents the battery from overcharging, over-discharging, over-current, and short circuits.
    4. Individual Li-ion batteries can be assembled in parallel or in series into stacks (customized)
    5. Clean energy, environment friendly
    6. Easy handling
    7. Certifications: RoHS, CE, UL and UN38.3, etc.
    The application of li-ion battery:
    Suitable for Power Supply, Remote Control Toys, Outdoor Lights,  TV Speaker, Surveillance Camera, Solar System, Medical Equipment, etc
