22.2V

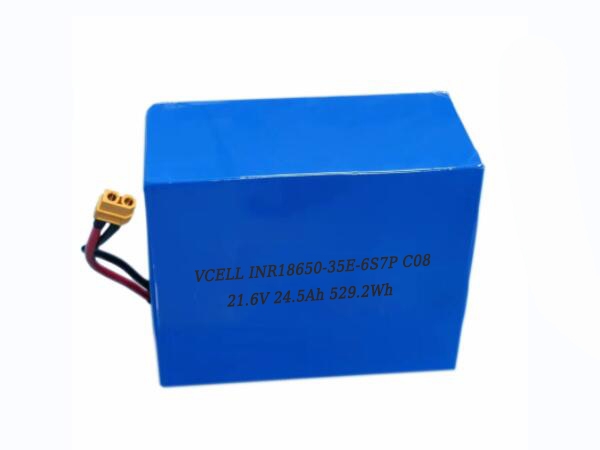

21.6V 24.5Ah 18650 6S7P Rechargeable Li-Ion Battery

Battery Type: Lithium Ion Battery(NCM)
Battery Brand: VCELL/OEM
Model: VP-NCM21.6-24.5
Nominal Voltage: 21.6V
Nominal Capacity: 24.5Ah
Charge Cut-Off Voltage: 25.2V
Discharge Cut-Off Voltage: 16.5V
Standard charge current: 4.9A
Max charge current: 24.5A
Standard discharge current: 4.9A
Max continuous discharge current: 70.0A
Peak discharge current: 126.0A(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(L*W*H): 115*134*69mm Max Or customized
Weight: 2.15kg Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The feature of Li-ion battery
    1. Long endurance
    2. No memory effect, fast charge
    3. Built-in PCM, prevents the battery from overcharging, over-discharging, over-current, and short circuits.
    4.  Small internal resistance. It greatly reduces the battery self-power consumption.
    5. Clean energy, environment friendly
    6. Easy handling
    7. Certifications: RoHS, CE, UL and UN38.3, etc.
    The application of li-ion battery:
    Suitable for e-bikes, power tools, electric vehicles, toys, consumer electronics, medical equipment, and other applications.
