22.2V

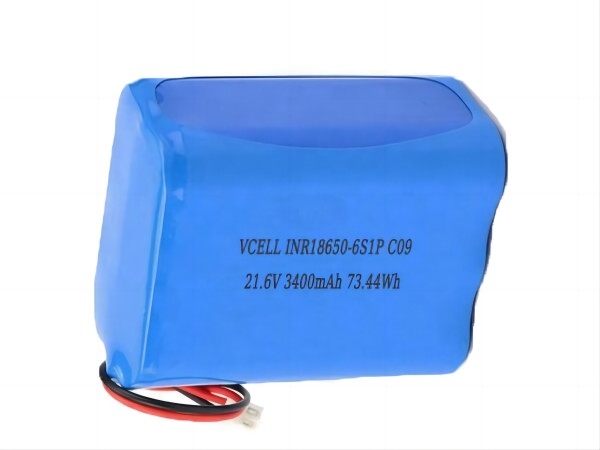

21.6V 3400mAh 6S1P 18650 Li-Ion Battery Pack

Battery Brand: VCELL/OEM
Battery Type: Lithium Ion Battery(NCM)
Model: VP21.6-3.4
Nominal Voltage: 21.6V
Nominal Capacity: 3400mAh
Charge Cut-Off Voltage: 25.2V
Discharge Cut-Off Voltage: 16.5V
Standard charge current: 1.7A
Max charge current: 3.4A
Standard discharge current: 1.7A
Max continuous discharge current: 5.0A
Peak discharge current: 10.0A(<3S )
Size(L*W*H): 70*40*58mm Max Or customized
Weight: 305g Approx
Cycle life: >700
Wire/Connector: TBD
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Send Inquiry
    The feature of Li-ion battery
    1. Long endurance
    2. No memory effect, fast charge
    3. Built-in PCM, prevents the battery from overcharging, over-discharging, over-current, and short circuits.
    4. Individual Li-ion batteries can be assembled in parallel or in series into stacks (customized)
    5. Clean energy, environment friendly
    6. Easy handling
    7. Certifications: RoHS, CE, UL and UN38.3, etc.

    The application of li-ion battery:
    Suitable for Power Supply, Remote Control Toys, Outdoor Lights,  TV Speaker, Surveillance Camera, Solar System, Medical Equipment, etc
