3.2V

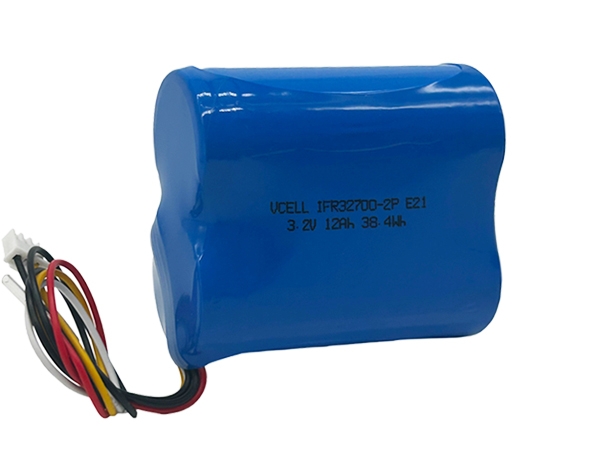

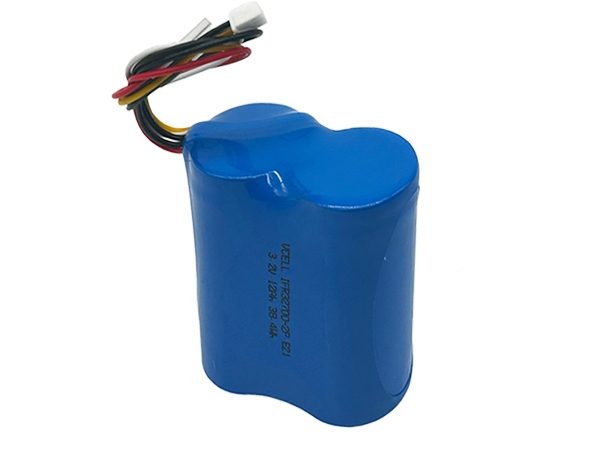

3.2V 12Ah LFP 32700 LiFePo4 Battery With I2C Communication Protocol

Battery Brand: VCELL/OEM
Battery Type: LiFePo4 Battery
Model: VP-LF3.2-12
Nominal Voltage: 3.2V
Nominal Capacity: 12Ah
Charge Cut-Off Voltage: 3.65V
Discharge Cut-Off Voltage: 2.0V
Charge current: 0.2C
Standard discharge current: 0.2C
Max continuous discharge current: 3.0C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~65℃
Size(L*W**H): 74*35*70mm Max
Weight: 275g Approx
Cycle life: >2500 cycles
Wire/Connector: TBD
Send Inquiry
    The charateristics of 3.2V 12Ah LFP 32700 LiFePo4 battery with I2C communication protocol
    1. High 12Ah capacity extends device operating time.
    2. Durable design with a cycle life exceeding 2500 cycles.
    3. LFP (Lithium Iron Phosphate) cathode material offers superior thermal stability compared to ternary lithium chemistries; it is resistant to thermal runaway during nail penetration, short-circuit, and overcharge tests, ensuring safety and reliability.
    4. Features an I2C communication interface, enabling real-time monitoring of battery voltage, State of Charge (SOC), current, temperature, and fault alerts.
    5. Compact size with high energy density, suitable for space-constrained applications (e.g., portable energy storage, power tools, robotics).
    6. Certified for safety and compliance (CE, RoHS, IEC62133, UL, etc.).
    Applications For 3.2V 12Ah LFP 32700 LiFePo4 battery with I2C communication protocol
    Solar street lights, garden lights, emergency lights, taxi roof lights, building indicator lights, portable mini-UPS backup power, backup power for communication base stations, AGVs, service robots, IoT devices, etc.
