24.0V

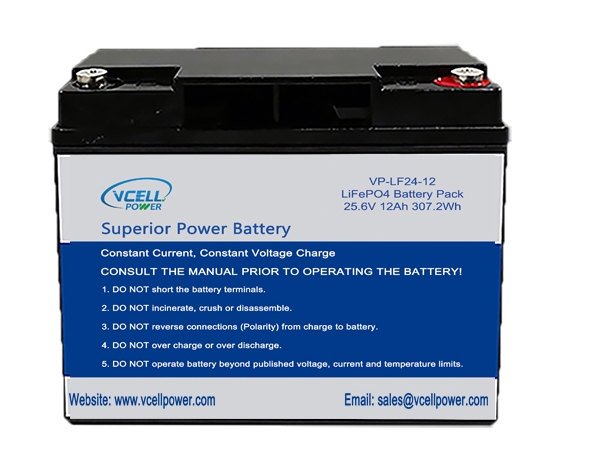

24V 25.6V 12Ah LiFePO4 Deep Cycle Rechargeable Battery

Battery Type: Lithium Iron Phosphate Battery
Battery Brand: VCELL/OEM
Model: VP-LF24-12
Nominal Voltage: 25.6V
Nominal Capacity: 15Ah
Charge Cut-Off Voltage: 29.2V
Discharge Cut-Off Voltage: 20.0V
Standard charge current: 2.4A
Max charge current: 12.0A
Standard discharge current: 2.4A
Max continuous discharge current: 12.0A
Peak discharge current: 20.0A(1-3S)
Charge temperature: 0~60℃
Discharge temperature: -20~65℃
Storage Temperature: -20~45℃
Design Life: ≥10 Years
Size(L*W*H): 181±1*77±1*167±1mm
Weight: 2.9 kg approx
Cycle life: ≥3000 times @25℃
Terminal: M5
IP Level: IP55
Send Inquiry
    The advantage of Vcell 24V 25.6V 12Ah LiFePO4 Deep Cycle Rechargeable Battery
    1. 1. A perfect replacement for traditional 24V lead-acid batteries; it offers a stable discharge plateau, avoiding the sudden voltage drop-off seen in lead-acid batteries during the later stages of discharge.
    2. Weighing only about 2.9kg, just 40% of the weight of an equivalent-capacity lead-acid battery. it reduces equipment load and extends runtime.
    3. It boasts a cycle life of over 3000 cycles, which is 4–6 times that of traditional lead-acid batteries. Lower usage costs and excellent value for money.
    4. IP55 dust and water resistance: effectively prevents most dust ingress and withstands low-pressure water jets; suitable for use in outdoor, humid, or dusty environments.
    5. Made from ABS plastic: lightweight yet highly durable, offering drop resistance, compression resistance, impact resistance, flame retardancy, and corrosion resistance.
    6. Built-in BMS: provides real-time protection against overcharge, over-discharge, over-current, and short circuits, while balancing cells to significantly extend service life.
    Applications for Vcell 24V 25.6V 12Ah LiFePO4 Deep Cycle Rechargeable Battery:
    RVs, camping, ice fishing, trolling motors, small electric wheelchairs, mobility scooters for the elderly, children‘s electric ride-on toys, small electric carts, luggage carriers, electric lawnmowers, electric tea harvesters, electric trimmers, hedge trimmers, outdoor sprayers, small agricultural irrigation equipment, etc.
