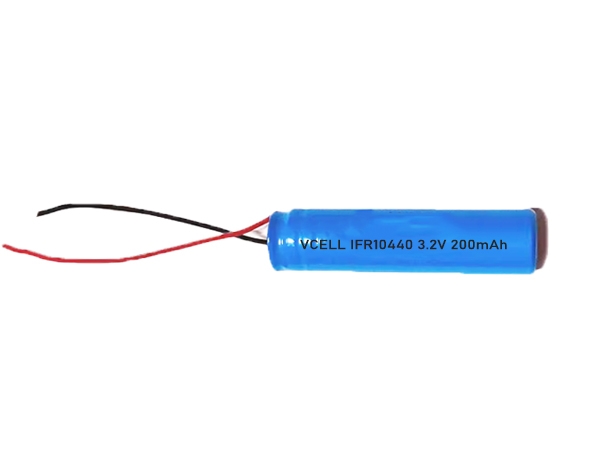

3.2V 200mAh IFR10440 Rechargeable LiFePo4 Battery With PCM

Battery Type: Lithium Iron Phosphate Battery
Battery Brand: VCELL/OEM
Model: IFR10440-1S1P
Nominal Voltage: 3.2V
Nominal Capacity: 200mAh
Charge Cut-Off Voltage: 3.65V
Discharge Cut-Off Voltage: 2.0V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 3.0C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~65℃
Size(D*H): 11*47mm Max
Weight: 11g Approx
Cycle life: >2500
Wire/Connector: TBD
Send Inquiry
    The feature of lifepo4 battery
    1. Rechargeable, built to last
    2. No memory effects, Low self-discharge rate
    3. Powerful energy, long endurance
    4. Built-in PCM, prevents the battery from overcharging, over-discharge, short circuit, etc.
    5. Widely used in GPS road studs, toys, miner lamps, solar street lights, emergency lights, electric torches, etc
