3.2V Cell

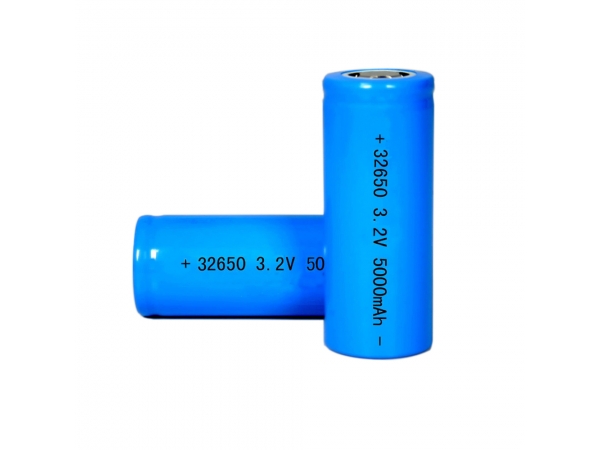

IFR32650 3.2V 5000mAh LiFePo4 battery

Battery Type: LiFePo4 Battery
Model: IFR32650
Nominal Voltage: 3.2V
Nominal Capacity: 5000mAh
Charge Cut-Off Voltage: 3.65V
Discharge Cut-Off Voltage: 2.0V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 3.0C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~65℃
Size(D*H): 32.5*65.5mm Max
Weight: 89.0g Approx
Cycle life: >2500
Send Inquiry
    Features:
    1.Longer storage life
    2.Light weight and higher energy density
    3.It can be built with PCM/BMS for over charge, over discharge, over current. temperature, short circuit protection......
    4.Perfect for building up battery pack for medical equipment back-up or EPS emergency power
    5.Supply which requires compact size and lightweight
