7.4V

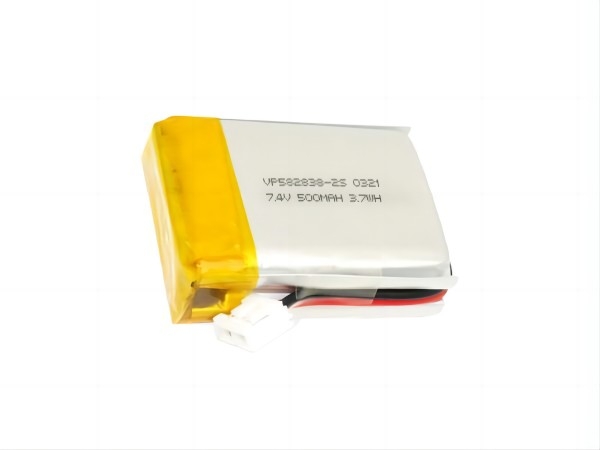

582838-2S 7.4V 500mAh 3.7Wh LiPo Battery Pack

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP582838-2S
Nominal Voltage: 7.4V
Nominal Capacity: 500mAh
Charge Cut-Off Voltage: 8.4V
Discharge Cut-Off Voltage: 5.5V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 11.8*28.5*40.5mm Max
Weight: 30.0g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    Battery Feature:
    1. High energy density lithium polymer battery.
    2. Long life cycle of charging & discharging, more than 700 cycles.
    3. Built-in PCM to prevent battery overcharge, over-discharge, short circuit, etc.
    4. Thinner design & lighter weight with aluminum-plastic composite.
    5. OEM & ODM services for special sizes of lithium polymer batteries.
    6. Easy to assemble with mounted connectors (Molex, Tyco, and so on).
    7. Rigorous testing to ensure the quality of all lithium polymer batteries.
    Our Service:
    The size of lithium polymer battery can be custom-made. We have advantage making special Li-Po battery such as extremely thin Li-Po battery (1.5mm), high-temperature Li-Po battery, low-temperature Li-Po battery, special shape Li-Po battery (round)
    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
