7.4V

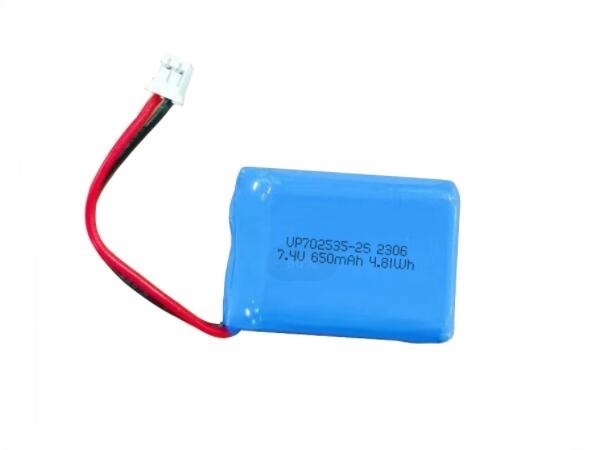

7.4V 650mAh 4.81Wh 702535 2S Lithium Polymer Battery Pack

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP702535-2S
Nominal Voltage: 7.4V
Nominal Capacity: 650mAh
Charge Cut-Off Voltage: 8.4V
Discharge Cut-Off Voltage: 5.5V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
PCM: Over charge/discharge, over current, short circuit protection
Size(T*W*L): 14.2*25.5*37.5mm Max
Weight: 45.0g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    7.4V 650mAh Li-Polymer Battery Pack
    Feature：
    1. High energy density lithium polymer battery
    2. Long life cycle of charging & discharging, more than 500 cycles
    3. Thinner design & lighter weight with aluminum-plastic composite
    4. OEM & ODM services for special size of lithium polymer battery
    5. Easy to assemble with mounted connectors (Molex, Tyco and so on)
    6. Rigorous testing to ensure the quality of all lithium polymer batteries
    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
