36V

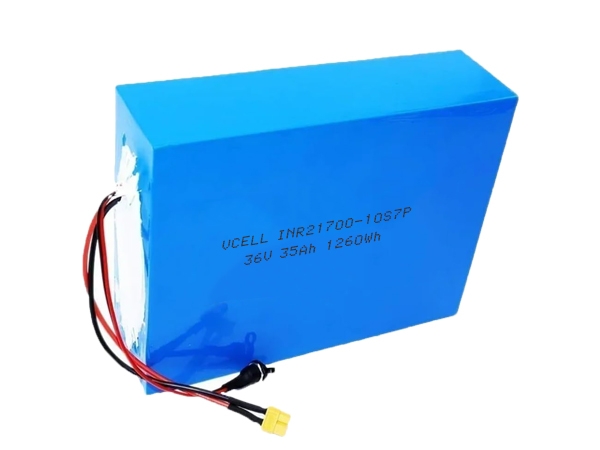

36V 35Ah 10S7P 21700 Li-Ion Battery Pack

Battery Type: Lithium Ion Battery(NCM)
Nominal Voltage: 36V
Nominal Capacity: 35Ah
Battery Brand: VCELL/OEM
Model: VP-NCM-36-35
Charge Cut-Off Voltage: 42V
Discharge Cut-Off Voltage: 27.5V
Max Charge Current: 1.0C
Maximum Continuous Discharge Current: 1.5C
Peak Discharge Current: 3.0C(<3S)
Charge Temperature: 0~45℃
Discharge Temperature: -20~60℃
Size(L*W*T): 223*74*156mm Max, with BMS
Weight: 5.3Kg Approx
Cycle Life: > 700 Cycles
Communication Function: Support communication functions like SMBUS, RS232/485, CANBUS
Wire/Connector: TBD
Send Inquiry
    The features of 36V 35ah li-ion battery pack
    1. A large 35Ah capacity combined with the high energy density of 21700 cells ensures long-lasting battery life, suitable for extended work hours or long-distance applications, reducing the hassle of frequent charging.
    2. Improved battery discharge capacity can handle the instantaneous high power demands of power tools, small vehicles, etc.
    3. 700+ cycle life, durable and cost-effective.
    4. Built-in BMS, safe to use
    5. Durable PVC wrap to protect against wear and tear
    6. Support communication functions like SMBUS, RS232/485, CANBUS
    7. Free from polluting elements such as cadmium, lead, and mercury, compliant with RoHS regulations, and environmentally friendly.
    The applications of 36V 35ah li-ion battery pack
    Suitable for electric bicycles, electric tricycles, balance scooters, electric skateboards, garden trimmers, portable power supplies, UPS, power tools, robots, AGVs, etc.
