7.4V

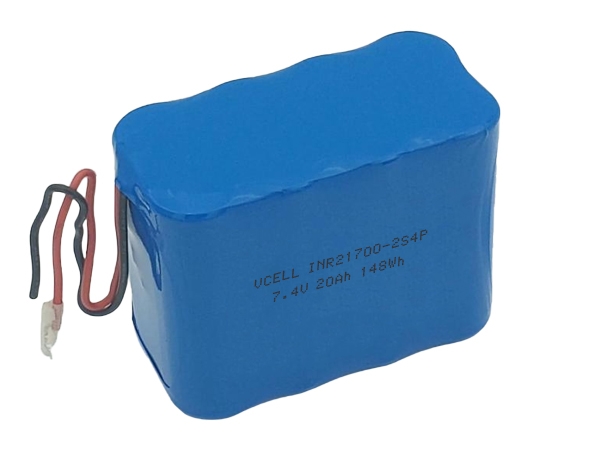

7.4V 20Ah 2S4P 21700 Lithium Ion Battery With BMS

Battery Brand: VCELL/OEM
Battery Type: Lithium Ion Battery(NCM)
Model: VP-NCM7.4-20
Nominal Voltage: 7.4V
Nominal Capacity: 20Ah
Charge Cut-Off Voltage: 8.4V
Discharge Cut-Off Voltage: 5.5V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 3C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(L*W*H): 90*48*73mm Max
Weight: 605g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The Feature Of 7.4V 20Ah 2S4P 21700 Lithium Ion Battery
    1. 20Ah large capacity, long endurance
    2. 7.4V nominal voltage, suitable for replacing various small and medium-sized lithium battery pack solutions.
    3. 700+ cycle life, durable, and economical.
    4. Utilizes high-quality 21700 lithium-ion cells, high energy density, reducing battery pack weight and size.
    5. Built-in BMS, supports overcharge, over-discharge, overcurrent, and short-circuit protection; customizable communication protocol.
    5. Factory direct sales, fully tested before shipment, safe, reliable, and cost-effective.
    6. Environment-friendly
    The Application Of 7.4V 20Ah 2S4P 21700 Lithium Ion Battery
    Surveying instruments, laser instruments, medical monitors, service robots, inspection robots, and wireless surveillance cameras, etc
