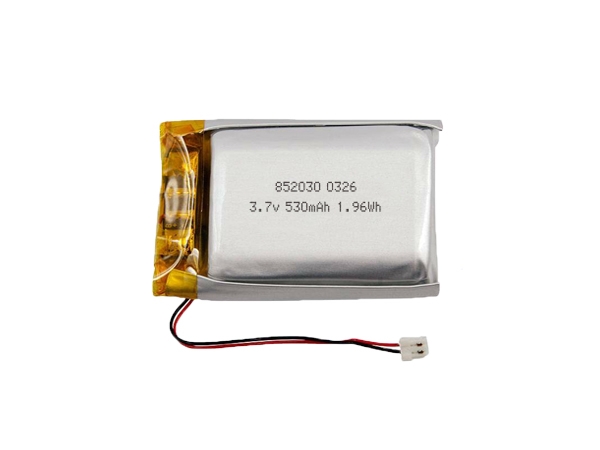

852030 3.7V 530mAh Lipo Rechargeable Battery With PCM

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP852030
Nominal Voltage: 3.7V
Nominal Capacity: 530mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Max charge current: 1C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S)
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 8.7*20.5*32.5mm Max With PCM
Weight: 11.0g Approx.
Cycle life: >700 times
Lifetime: >5 Years
Wire/Connector: TBD
Send Inquiry
    The application of 852030 LiPo Battery:
    Smart wearable devices, Bluetooth headsets/speakers, portable devices, radio-controlled devices, medical devices, personal electronics, GPS trackers, laptops, mobile phones, digital cameras, digital camcorders, etc
    The features of 852030 lithium polymer battery
    1. Long endurance
    2. Low self-discharge
    3. No memory effect, long lifetime
    4. Small size, low weight, easy to install
    5. Built-in PCM to protect the battery, safe and secure
    Environmental friendly
    Note: The size of lithium polymer battery can be custom-made. We have advantage making special LiPo battery such as extremely thin LiPo batteries (1.5mm), high-temperature LiPo batteries, low-temperature LiPo batteries, and special shape LiPo batteries (round), welcome to inquiry!
