3.7V

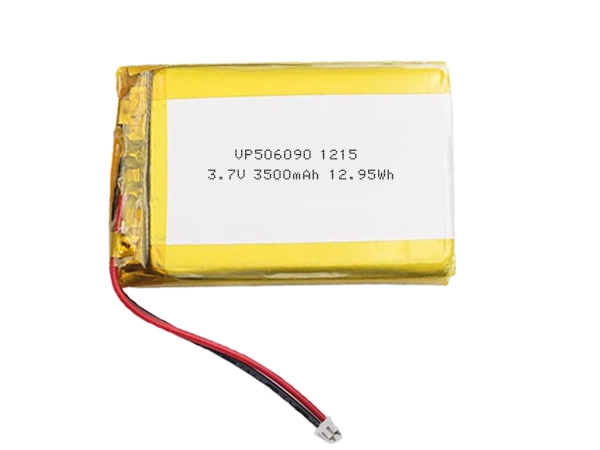

506090 Lithium Polymer Battery 3.7V 3500mAh

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP506090
Nominal Voltage: 3.7V
Nominal Capacity: 3500mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): Max 5.2*60.5*92.5mm
Weight: 56g Approx
Cycle life: >700 cycles at 100%DOD
Service life: >5 years
Wire/Connector: TBD
Send Inquiry
    The features of 506090 lithium polymer battery 3.7v 3500mah
    1. Monthly self-discharge rate less than 1.5%, convenient storage, stable battery life, reduced energy waste, and long-lasting durability.
    2. Over 700 cycle life, service life exceeding 5 years, ensuring long-lasting durability.
    3. 5mm ultra-thin design, suitable for devices with strict size requirements, lightweight and portable.
    4. High energy density, 3500mAh large capacity, long-lasting battery life.
    5. Polymer packaging eliminates leakage risk, is less prone to explosion, and can be equipped with PCM for multiple battery protection.
    6. Complete certifications, customizable plugs and wire lengths.
    7. Strong environmental adaptability.
    The applications of 506090 lithium polymer battery 3.7v 3500mah
    Power banks, e-readers, portable projectors, Bluetooth speakers, portable medical testing equipment, smart central control screens, tablet computers, smart PDAs, etc.
