3.7V

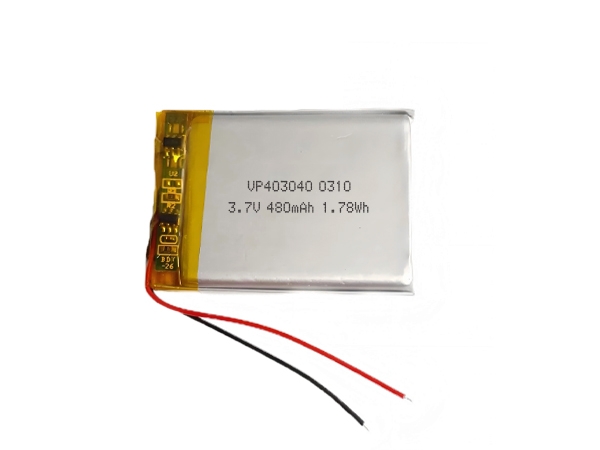

403040 3.7V 480mAh Lipo Battery With PCM

Battery Type: Lithium Polymer Battery
Battery Brand: VCELL/OEM
Model: VP403040
Nominal Voltage: 3.7V
Nominal Capacity: 480mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 4.2*30.5*42.5mm Max, With PCM
Weight: 11.0g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The application of 403040 li-polymer battery:
    Dash camera, meshtastic node, smart wearables devices, Bluetooth devices, etc.
    The features of 403040 lithium polymer battery
    1. Low self-discharge, long endurance
    2. No memory effect, long lifetime
    3. Small size, low weight, easy to install
    4. Built-in PCM to protect the battery, safe and secure
    5. Environmental friendly
    Note: The size of lithium polymer battery can be custom-made. We have advantage making special LiPo battery such as extremely thin LiPo batteries (1.5mm), high-temperature LiPo batteries, low-temperature LiPo batteries, and special shape LiPo batteries (round), welcome to inquiry!
