3.7V

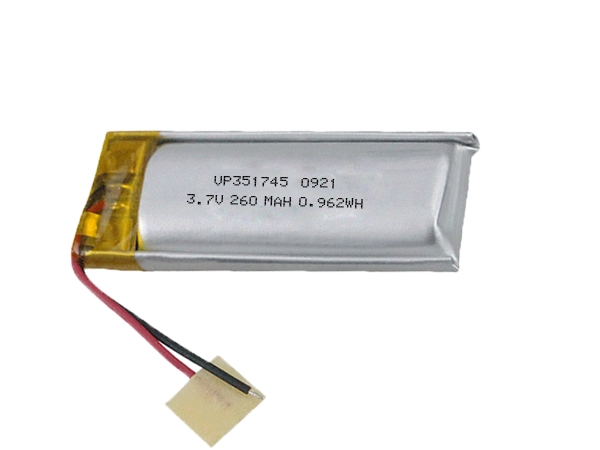

351745 3.7V 260mAh Rechargeable Lipo Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP351745
Nominal Voltage: 3.7V
Nominal Capacity: 260mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S)
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 3.7*17.5*47.5mm Max, With PCM
Weight: 5.0g Approx.
Cycle life: >700 times
Lifetime: >5 Years
Wire/Connector: TBD
Send Inquiry
    The features of 351745 3.7v 260mAh rechargeable Lipo battery
    1. Ultra-thin 3.5mm design offers high space efficiency, making it ideal for slim, compact devices.
    2. Features high-quality aluminum-plastic film packaging and a gel-state interior, eliminating the risk of leakage.
    3. Compatible with an optional PCM protection board, supporting safeguards against overcharge, over-discharge, short circuits, and overcurrent.
    4. Offers a cycle life exceeding 700 cycles and low self-discharge, making it suitable for devices with infrequent usage or long standby times.
    5. Weighs only 5g; its compact, lightweight profile minimizes the device‘s overall weight.
    6. Lead wires, terminals, NTC thermistors, and protection boards can be customized to meet specific application requirements.
    Application for 351745 3.7v 260mAh rechargeable Lipo battery
    Slim smart bracelets, health monitoring patches, smart sleep masks, heated insoles, neckband Bluetooth headphones, GPS trackers, invisible hearing aids, electronic thermometers, portable beauty devices, etc.
