3.7V

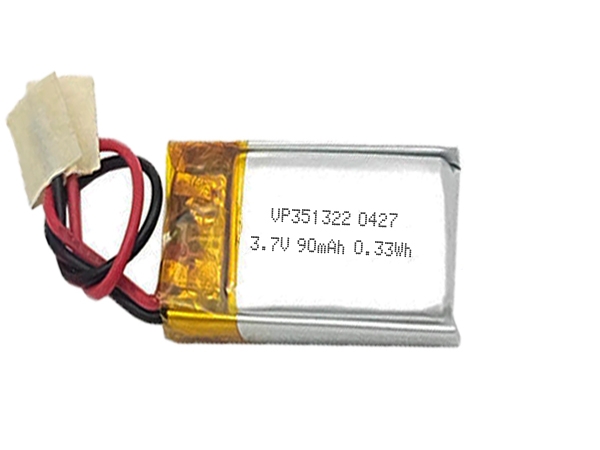

351322 3.7V 90mAh LiPO Rechargeable Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP351322
Nominal Voltage: 3.7V
Nominal Capacity: 90mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 3.7*13.5*24.5mm Max
Weight: 2.0g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The features of Vcell 351322 3.7v 90mah lipo rechargeable battery
    1. Ultra-compact, ultra-thin, and ultra-light, measuring just 3.5 mm in thickness and weighing only 2 grams, it serves as the "invisible power source" for miniature wearable devices and IoT applications.
    2. Retains ≥80% of its original capacity after 700 charge cycles, ensuring low long-term operating costs.
    3. Features an aluminum-plastic film pouch design that eliminates the risk of electrolyte leakage; it can be paired with a PCM to protect against overcharging, over-discharging, and short circuits, ensuring safety and reliability.
    4. Eco-friendly and environmentally safe.
    The applications of Vcell 351322 3.7v 90mah lipo rechargeable battery
    commonly used in miniature consumer electronics, toys, IoT sensors, and wearables.
