3.7V

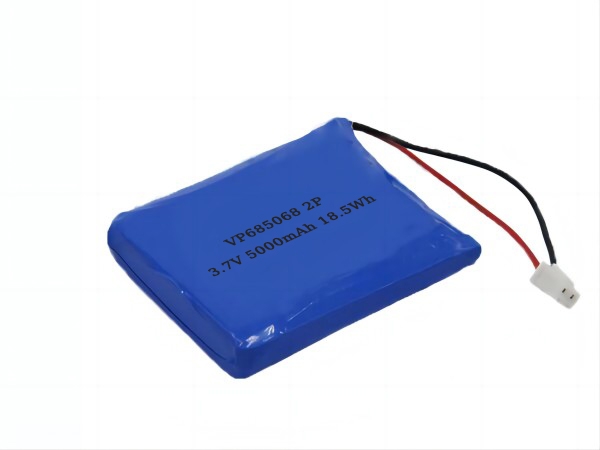

3.7V 5000mAh 685068-2P Lithium Polymer Battery

Battery Type: Lithium Polymer Battery
Nominal Voltage: 3.7V
Nominal Capacity: 5000mAh
Battery Brand: VCELL/OEM
Model: VP685068-2P
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 13.8*50.5*70.5mm Max, with PCM
Weight: 140.0g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The application of 685068-2P li-polymer battery:
    ⋅Bluetooth products.
    ⋅Smart wearable.
    ⋅Digital products.
    The features of 685068-2P li-polymer battery:
    ⋅It has good safety performance.
    ⋅High energy density.
    ⋅Good circulation performance and low self-discharge rate.
