3.2V Cell

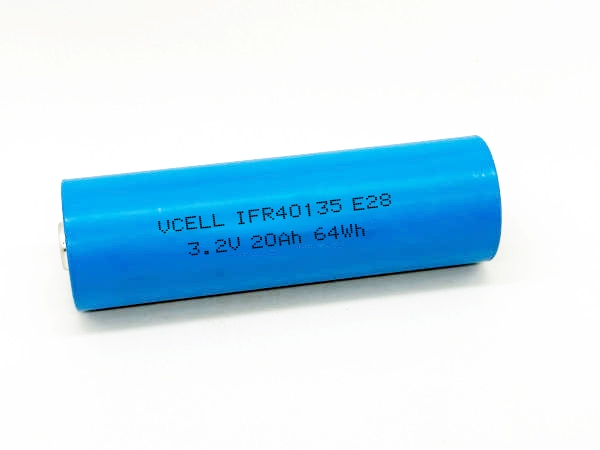

40135 LFP 3.2V 20Ah LiFePo4 Rechargeable Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Iron Phosphate Cell
Model: IFR40135
Nominal Voltage: 3.2V
Nominal Capacity: 20Ah
Charge Cut-Off Voltage: 3.65V
Discharge Cut-Off Voltage: 2.0V
Standard charge current: 0.5C
Max charge current: 1.0C
Standard discharge current: 0.5C
Max continuous discharge current: 3.0C(≤30S )
Peak discharge current: 6.0C(≤5S )
Impedance: <1.9mΩ
Charge temperature: 0~55℃
Discharge temperature: -20~65℃
Storage temperature: ≤1 month: -20 ~ 45℃; ≤3 months: -20 ~ 35℃; ≤1 year: 0 ~ 25℃.
Size(D*H): 40.5*135.0mm
Weight: 370.0g Approx
Cycle life: >4000 times
Send Inquiry
    The Features of 40135 LFP 3.2V 20Ah LiFePo4 Rechargeable Battery
    1. Supports 3C continuous discharge and 6C high-current instantaneous discharge, delivering strong power to handle all tasks effortlessly.
    2. Made with lithium iron phosphate material, it exhibits excellent heat resistance, is less prone to fire or explosion, ensuring safety and reliability.
    3. It can achieve over 4000 charge-discharge cycles, offering long-lasting durability and cost-effectiveness.
    4. Environmentally friendly, compliant with international eco-certification standards such as RoHS.
    The Applications of 40135 LFP 3.2V 20Ah LiFePo4 Rechargeable Battery
    AGV/AMR, golf carts, medical mobility scooters, commercial cleaning equipment, electric forklifts, sightseeing vehicles, UPS uninterruptible power supplies, truck air conditioning power systems, etc.
