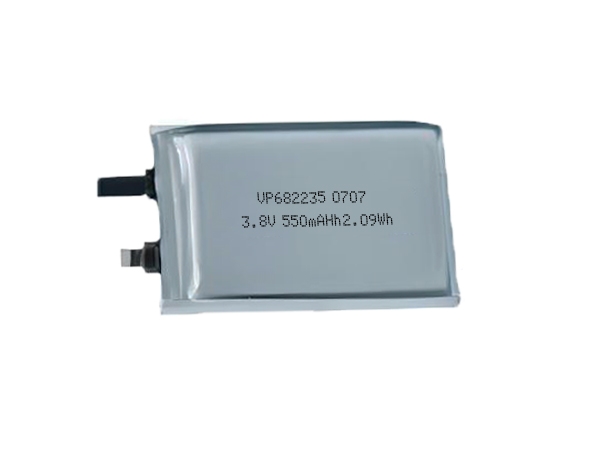

682235 3.8V 550mAh LiPO Rechargeable Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP682235
Nominal Voltage: 3.8V
Nominal Capacity: 550mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*H): 6.8*22.0*35.0mm Max
Weight: 9g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The Features Of Vcell 682235 3.8V 550mAh LiPO Rechargeable Battery
    1. Features a 3.8V high-voltage platform; compared to traditional 3.7V lithium batteries, it offers higher energy density and delivers more stable, long-lasting power output.
    2. 550mAh capacity balances compact size with runtime, making it suitable for a wide range of lightweight electronic devices.
    3. Ultra-thin, lightweight design saves internal space, offering greater design flexibility for compact devices.
    4. High energy density stores more power within a limited volume, extending device usage time.
    5. Supports over 700 charge-discharge cycles, reducing operating costs and promoting environmental sustainability.
    6. Utilizes premium polymer cells, ensuring excellent cycle life and stable discharge performance.
    7. Compatible with PCM (Protection Circuit Module) to provide protection against overcharge, over-discharge, over-current, and short circuits.
    8. Customizable wiring, connectors, protection boards, and dimensions to meet specific OEM/ODM project requirements.
    The Applications Of Vcell 682235 3.8V 550mAh LiPO Rechargeable Battery
    Dash cams, GPS trackers, blood glucose meters, pulse monitors, temperature sensors, humidity sensors, portable monitors, etc.
