You are here:Home >> Products >> Lithium Polymer Battery... >> 3.7V

3.7V

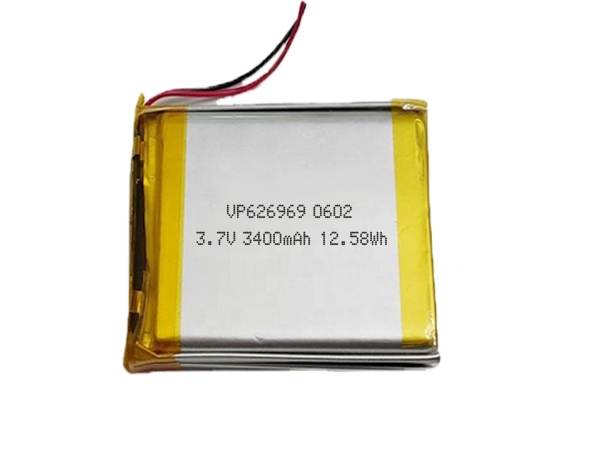

626969 3400mAh 3.7V Lithium Polymer Battery With PCM

Battery Type: Lithium Polymer Battery
Battery Brand: VCELL/OEM
Model: VP626969
Nominal Voltage: 3.7V
Nominal Capacity: 3400mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 6.4*69.5*71.5mm Max, With PCM
Weight: 62.0g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The Features Of Vcell 626969 3400mAh 3.7V Lithium Polymer Battery
    1. With a thickness of just 6.4mm, it is slim, lightweight, and space-saving, making it ideal for ultra-thin devices.
    2. Boasting a large capacity of 3400mAh, it provides devices with long-lasting and stable power support.
    3. Utilizing aluminum-plastic film pouch packaging, it poses no risk of explosion—unlike cylindrical lithium batteries—thereby offering superior safety.
    4. Rated for ≥700 standard charge-discharge cycles, ensuring exceptional durability and longevity.
    5. Can be customized with a protection board, lead wires, and a connector plug.
    The Applications Of Vcell 626969 3400mAh 3.7V Lithium Polymer Battery
    Power bank, handheld game consoles, portable Bluetooth speakers, handheld detectors, portable thermometers, gas detectors, portable home pulse oximeters, nebulizers, portable physiotherapy devices, portable POS terminals, handheld barcode scanning PDAs, and more.
    Note: The size of lithium polymer battery can be custom-made. We have advantage making special LiPo battery such as extremely thin LiPo battery (1.5mm), high temperature LiPo battery, low-temperature LiPo battery, and special shape LiPo batteries (round), welcome to inquiry!
