3.7V

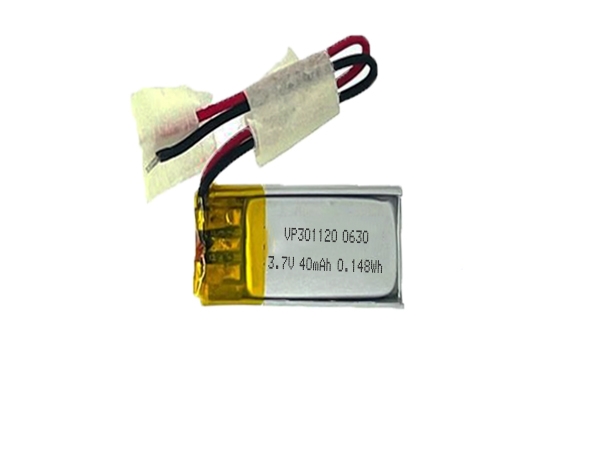

301120 3.7V 40mAh Lithium Polymer Battery For Earbuds

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP301120
Nominal Voltage: 3.7V
Nominal Capacity: 40mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S)
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 3.0*13.5*22.5mm Max
Weight: 1.2g Approx.
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The Advantages of Vcell 301120 3.7V 40mAh Lithium Polymer battery
    1. Ultra-thin profile (only 3.2mm); designed specifically for miniature devices.
    2. Low self-discharge rate for long standby times.
    3. Cycle life exceeding 700 cycles; durable, stable, and reliable.
    4. Built-in protection circuit board providing safeguards against overcharge, over-discharge, and short circuits.
    5. Compliant with RoHS and other environmental standards; safe, eco-friendly, and worry-free.
    The Applications of Vcell 301120 3.7V 40mAh Lithium Polymer battery
    Bluetooth headsets, mini smart bands, mini voice recorders, miniature wireless microphones,
    mini Bluetooth remote controls, selfie remotes, miniature cameras, etc.
