24.0V

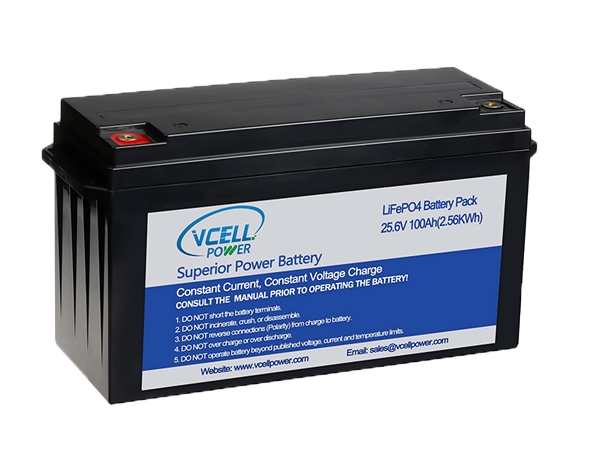

25.6V 100Ah LiFePO4 Deep Cycle Battery With ABS Case

Mode: VP-LF24-100
Nominal Voltage: 25.6V
Nominal Capacity: 100.0Ah
Charge Cut-Off Voltage: 29.2±0.2V
Discharge Cut-Off Voltage: 20.0±0.2V
Max Charge Current: 100.0A
Max Continuous Discharge Current: 100.0A
Peak Discharge Current: 200.0A(1-3S)
Charge Temperature Range: 0~45℃
Discharge Temperature Range: -20~65℃
Storage Temperature: -20°C~50°C
Design Life: ≥10 Years
Cycle Life: ≥4000 @100% DOD, 0.5C Charge/Discharge
Dimension: 522*238*218*220mm
Weight: ~21.0Kg
Terminal: M8
IP Level: IP55
Send Inquiry
    The Features Of Vcell 25.6V 100Ah 2.56Kwh LiFePO4 Deep Cycle Battery With ABS Case
    1. The high-quality ABS plastic casing offers exceptional impact resistance, effectively protecting internal cells from external shocks while providing resistance to moisture, acids, and alkalis.
    2. It boasts a cycle life of over 4,000 cycles and a service life exceeding 10 years, offering far superior overall cost-effectiveness compared to lead-acid batteries.
    3. High 100Ah capacity ensures long-lasting performance.
    4. For the same capacity, the LiFePO4 battery is half the size of a lead-acid battery, saving installation space.
    5. A built-in advanced BMS provides comprehensive protection against overcharge, over-discharge, over-current, short circuits, and overheating, maximizing safety and extending battery lifespan.
    The Applications Of Vcell 25.6V 100Ah 2.56Kwh LiFePO4 Deep Cycle Battery With ABS Case
    residential solar energy storage systems, industrial and commercial energy storage, backup power for telecommunication base stations, RVs, camper vans, 24V electric fishing boats, sightseeing vehicles, and more.
