24.0V

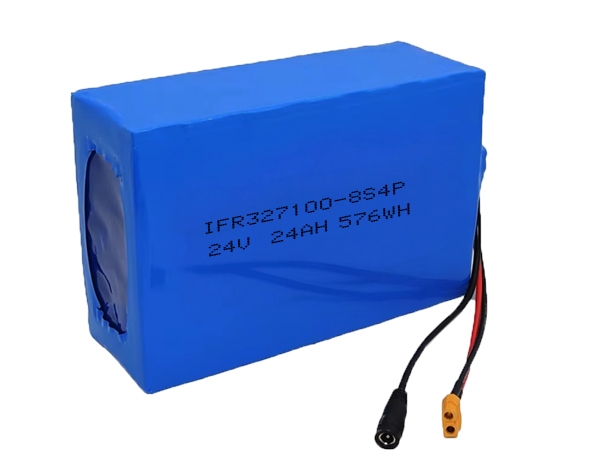

24V 24Ah 8S4P IFR32700 LiFePo4 Battery Pack

Battery Brand: VCELL/OEM
Battery Type: Lithium Iron Phosphate Battery
Model: VP-LF24-24
Nominal Voltage:25.6V
Nominal Capacity: 24Ah
Charge Cut-Off Voltage: 29.2V
Discharge Cut-Off Voltage: 20.0V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 3.0C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~65℃
Size(L*W*H): 275*145*79mm Max or Customization
Weight: 4.5kg Approx
Cycle life: >2500 times
Wire/Connector: TBD
Send Inquiry
    The features of 24v 24ah 8s4p ifr32700 lifepo4 battery pack
    1. Cycle life exceeds 2500 cycles; service life ranges from 5 to 10 years.
    2. Direct replacement for 24V lead-acid batteries; weighs approximately one-third of a lead-acid battery of the same capacity and features a more compact size.
    3. Lithium Iron Phosphate chemistry offers resistance to overcharge and high temperatures, ensuring safety against fire or explosion.
    4. Compliant with RoHS and CE environmental standards.
    5. Equipped with a BMS providing protection against overcharge, over-discharge, over-current, short circuits, and temperature extremes; optional features include cell balancing, Bluetooth monitoring, low-temperature protection, and communication interfaces.
    6. Free from hazardous heavy metals such as lead, mercury, and cadmium; environmentally friendly.
    7. Customizable specifications to meet equipment requirements, including dimensions, BMS, connectors, wiring, terminals, capacity, and branding/logos.
    Application for 24v 24ah 8s4p ifr32700 lifepo4 battery pack
    Electric scooters, Electric bike, Solar energy storage systems, off-grid power systems, RV, Marine, AGV, AMR, Industrial robots, UPS systems,etc.
