3.2V Cell

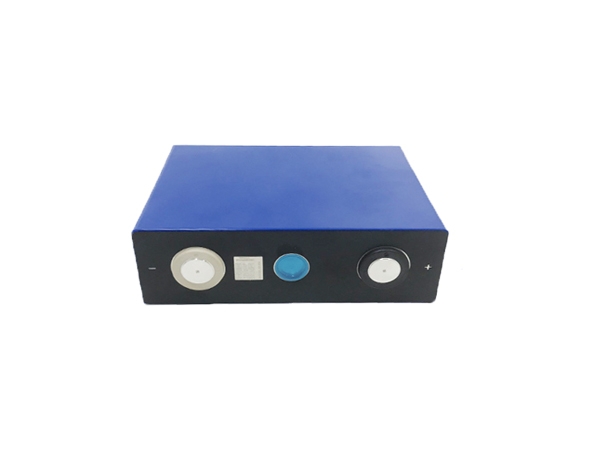

3.2V 100Ah Low Temperature Discharge Prismatic Lifepo4 Battery Cell

Battery type: Lithium Iron Phosphate Cell
Mode: IFR36130216-WT
Nominal voltage: 3.2V
Nominal capacity: 100Ah
Charge cut-off voltage: 3.65V
Discharge cut-off voltage: 2V
Standard Charge Current:  34A
Max charge current: 100A
Max Continuous discharge current: 100A
Peak discharge current: 300A(30s)
Charge  temperature: -20~60℃
Discharge temperature: -50~80℃
Internal Resistance: ≤0.5mΩ
Cycle life: >4000 cycles @0.5C/0.5C at 25℃
Weight: Approx 2Kg
Dimension(L*W*H): 160±0.8mm*50.1±0.5mm*118.5±0.5mm
Send Inquiry
    The features of lifepo4 battery:
    1. High capacity, long endurance
    2. No memory effect, Long lifespan, built to last
    3. Wide charge/discharge temperature, wide application range
    4. Easy to assemble
    5. Factory price, high cost-effective
    6. Pollution-free

    The application of lifepo4 battery :
    Solar street lights/solar systems in high-temperature or cold areas, etc
