LI-SOCL2 Battery

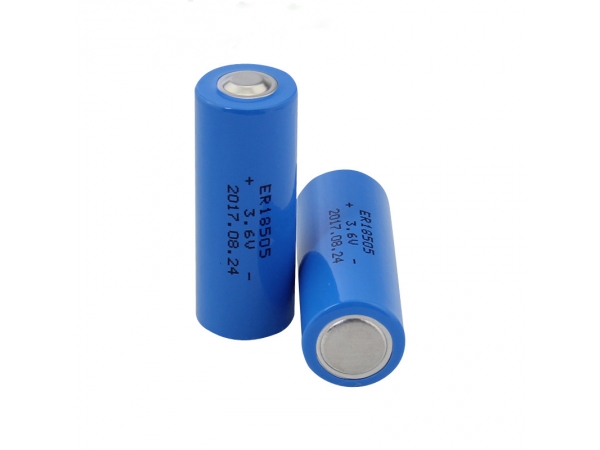

3.6V 4000mAH LI-SOCL2 ER18505 Battery

Nominal Voltage: 3.6V
Nominal Capacity: 4000mAh
Maximum Continuous current: 120mA
Maximum Pulse current: 200mA
Operating Temperature range: -55 to +85°C
Storage Temperature: +25°C
Discharge Cut-off voltage: 3.0V
Size: φ18.2*50.5mm
Weight: 30g
Lifespan: Over 10 years
Send Inquiry
    Feature:
    1.With high-operating voltage and stable.
    2.Performance independent from cell orientation.
    3.Superior shelf lifespan and reliability: over 10 years at room temperature and self-discharge rate <1% of nominal capacity per year.
    4.Bobbin structure energy type and best suited for low and discharge current.
    5.May require depassivation before medium currents.
    6.Typical values relative to cells stored for one year or less at 30°C.
