7.4V

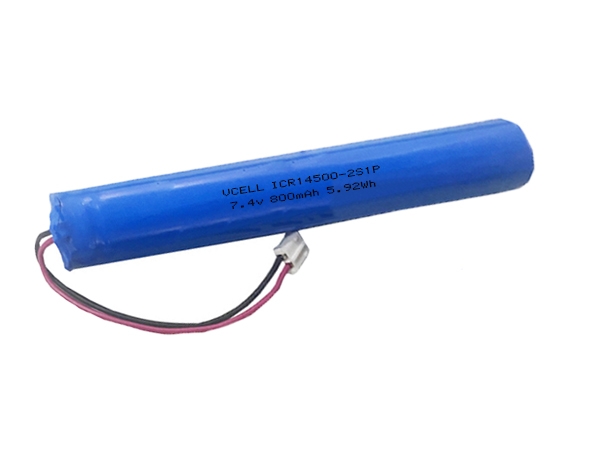

7.4V 800mAh ICR14500 Rechargeable Lithium Ion Battery Pack

Battery Type: Lithium Ion Battery(NCM)
Battery Brand: VCELL/OEM
Model: 14500-2S1P
Nominal Voltage: 7.4V
Nominal Capacity: 800mAh
Charge Cut-Off Voltage: 8.4V
Discharge Cut-Off Voltage: 5.5V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 3C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(D*H): 15*104mm Max
Weight: 45g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The features of li-ion battery:
    1. Powerful energy, long endurance
    2. Built-in PCM, effectively prevents the battery from overcharging, overcharging, over current and short circuits, safe and stable
    3. More than 700 times cycle life
    4. No memory effects, built to last
    5.  Environment-friendly
    The application of li-ion battery: electronic products, toy guns,  lamps, robots, etc.

    Note: Battery voltage, capacity, and size can be customized, please contact us if you have special requirements.
