3.7V Pack

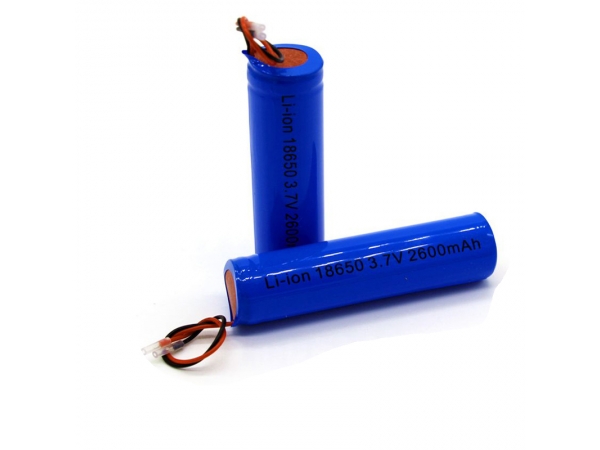

3.7V 18650 2600mAh Li-ion Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Ion Battery(NCM)
Model: ICR18650-2600
Nominal Voltage: 3.7V
Nominal Capacity: 2600mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 3.0C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(D*H): 18.5*69.5mm Max With PCM
Weight: 47.0g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    Advantages:
    1. Friendly to the environment, no Cadmium, mercury effect, lead
    2. No memory effect
    3. Low internal resistance with good consystency
    4. Long cycle life, more than 1000 cycles @80%DOD under normal use
    5. Low self-discharge character
    6. Low temperature -40℃ available
    7. With PCM， for over voltage, over current, short circuit protection
