3.7V Cylindrical Cell

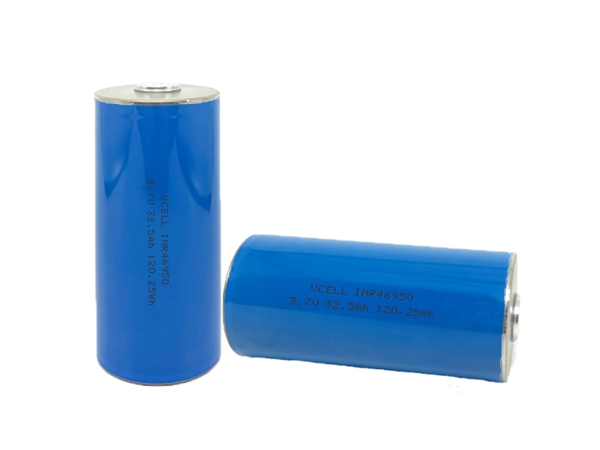

3.7V 32.5Ah INR46950 Cylindrical Lithium Ion Battery Cell

Battery Type: Lithium Ion Battery(NCM)
Battery Brand: VCELL/OEM
Model: INR46950-32.5
Nominal Voltage: 3.7V
Nominal Capacity: 32.5Ah
Charge Cut-Off Voltage: 4.2±0.02V
Discharge Cut-Off Voltage: 2.75±0.02V
Standard charge current: 0.2C
Fast charge current: 2.0C
Standard discharge current: 0.2C
Max continuous discharge current: 3.0C
Peak discharge current: 6.0C(Approx 10S )
Charge temperature: 0~55℃
Discharge temperature: -35~60℃
Size(D*H): 46.2±0.2*95±0.2mm Max
Weight: 425g Approx
Cycle life: >1000 times
Send Inquiry
    The feature of 3.7v 32.5ah INR46950 cylindrical lithium ion battery cell
    1. Ultra-large capacity design, long endurance
    2. Utilizes NCM positive electrode + graphite negative electrode materials, resulting in high energy density, high safety performance, long battery life.
    3. Built-in safety valve and explosion-proof membrane ensure safety and reliability.
    4. 1000+ cycle life, built to last.
    5. Standard cylindrical size facilitates battery pack assembly.
    The applications of 3.7v 32.5ah INR46950 cylindrical lithium ion battery cell
    Solar energy storage systems, portable power supplies, electric motorcycles, electric scooters, electric golf carts, electric forklifts, AGVs, UPS systems, etc.
