3.7V

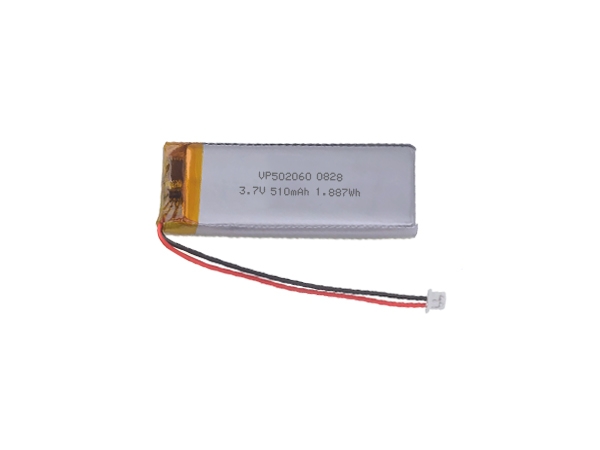

502060 3.7V 510mAh Li-Polymer Rechargeable Battery With Connector

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP502060
Nominal Voltage: 3.7V
Nominal Capacity: 510mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S)
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*H): 5.2*20.5*62.5mm Max
Weight: 10g Approx.
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    The feature of 3.7v 510mAh Li-Polymer battery
    1. Stable and long-lasting energy, long endurance
    2. Lightweight and portable, suitable for devices with strict space and weight requirements
    3. Over 700 times charge and discharge cycles, stable performance, cost-effective
    4. Low self-discharge rate, easy to store
    5. Supports the addition of a protective circuit board (PCM), NTC temperature control, cables, connectors, etc., and meets the different products.
    The application of 3.7V 510mAh Li-Polymer battery
    Voice recorders, Bluetooth headsets, smart bracelets, portable WiFi, handheld scanners, electronic dictionaries, portable blood glucose meters, blood pressure monitors, physical therapy devices, fitness trackers, GPS tracking devices, smart glasses, small remote controls, wireless sensors, electronic toys, etc.
    Note: The size of lithium polymer battery can be custom-made. We have advantage making special LiPo battery such as extremely thin LiPo battery (1.5mm), high temperature LiPo battery, low-temperature LiPo battery, and special shape LiPo batteries (round), welcome to inquiry!
