3.7V

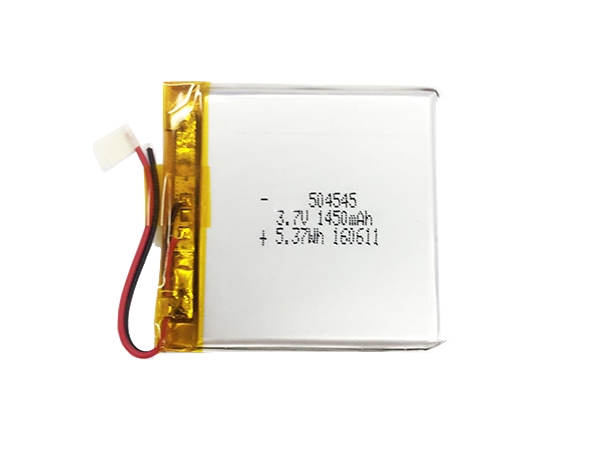

3.7V 1450mAh 504545 Big Capacity Lithium Polymer Battery

Battery Type: Lithium Polymer Battery
Nominal Voltage: 3.7V
Nominal Capacity: 1450mAh
Model: VP504545
Battery Brand: VCELL/OEM
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 5.2*45.5*47.5mm Max, with PCM
Weight: 29g Approx
Cycle life: >700
Wire/Connector: TBD
Send Inquiry
    Feature：
    1. High energy density lithium polymer battery.
    2. Long life cycle of charging & discharging, more than 500 cycles.
    3. Thinner design & lighter weight with aluminum-plastic composite.
    4. OEM & ODM services for special size of lithium polymer battery.
    5. Easy to assemble with mounted connectors (Molex, Tyco and so on).
    6. Rigorous testing to ensure the quality of all lithium polymer batteries.
