3.7V

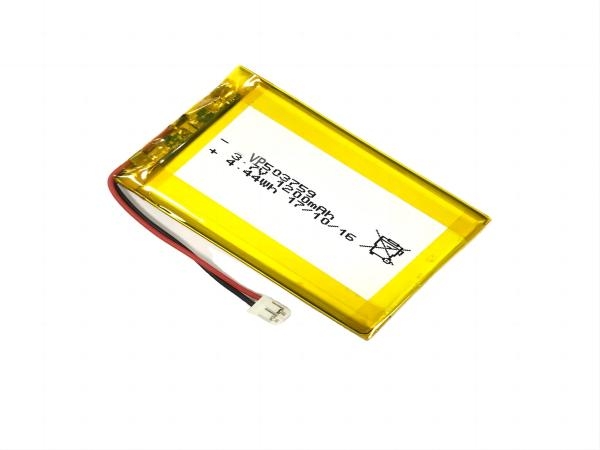

3.7V 1200mAh 503759 CE Certified Lithium Polymer Battery

Battery Brand: VCELL/OEM
Battery Type: Lithium Polymer Battery
Model: VP503759
Nominal Voltage: 3.7V
Nominal Capacity: 1200mAh
Charge Cut-Off Voltage: 4.2V
Discharge Cut-Off Voltage: 2.75V
Standard charge current: 0.2C
Max charge current: 1C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 5C(<3S)
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(T*W*L): 5.2*37.5*61.5mm Max With PCM
Weight: 20.0g Approx.
Cycle life: >700 times
Lifetime: >5 Years
Wire/Connector: TBD
Send Inquiry
    Battery Application:
    Smart Watch, Earphones, GPS Tracker, Communication products, mobile office equipment, digital products, lighting products, and mobile transaction equipment.
    Others: driving recorders, model airplanes, racing cars, unmanned aircraft, robots, toys, electric tools, medical equipment and other products.
    Feature:
    This product has good hardness, high capacity, low internal resistance, safety and durability, explosion-proof and leak-proof, high energy density, life time more than 5 years.
    Note: Our company‘s battery can be customized according to the customer‘s size (the thickness, length and width of the cell can be increased or decreased according to the customer‘s needs, and new cell models can be developed) to match the most suitable battery model for the customer. Can add wires, add protection boards, add terminal plugs and so on for customers.
