14.8V

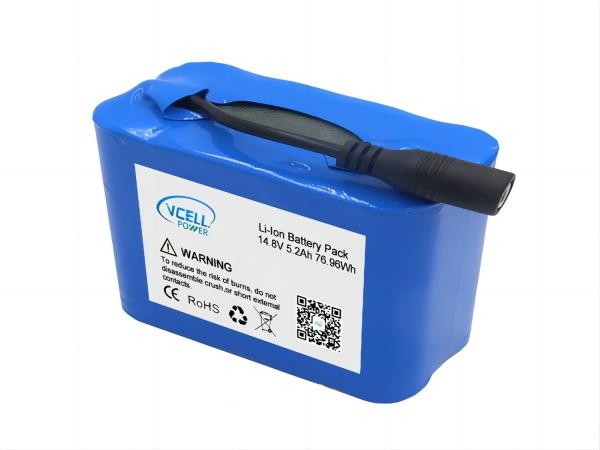

14.8V 5200mAh Li-Ion Battery Pack

Battery Brand: VCELL/OEM
Battery Type: Lithium Ion Battery(NCM)
Model: VP-NCM18650-14.8-5.2
Nominal Voltage: 14.8V
Nominal Capacity: 5200mAh
Charge Cut-Off Voltage: 16.8V
Discharge Cut-Off Voltage: 11.0V
Standard charge current: 0.2C
Max charge current: 1.0C
Standard discharge current: 0.2C
Max continuous discharge current: 1.5C
Peak discharge current: 3C(<3S )
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Size(L*W*H): 78*40*69mm Max
Weight: 405g Approx
Cycle life: >700 times
Wire/Connector: TBD
Send Inquiry
    Feature
    1. Long life. Cycle life more than 700 times.
    2. High safety performance. High energy density.
    3. Rechargeable and affordable!
    4. No memory effect. Before charging Do not have to discharge the remaining electricity, easy to use.
    5. Small internal resistance. Greatly reduces the battery self-power consumption.
    6. Charging Temperature:0 to 45°C; Discharging Temperatures :-20 to 60°C; Storage Temperature:-20 to 60°C
    7. Environmentally friendly, no pollution.
    Application: Robot, vacuum cleaner, monitoring, backup power supply, LED lights, audio, loudspeaker, attendance machine, wireless monitoring equipment, medical equipment, instrumentation, etc.
